This web page is intended to provide easily-accessible national distribution information at 10Km, 2Km and Vice County scales from National Moth Recording Scheme (NMRS) macro-moth records and the Butterflies for the New Millennium (BNM) records held by Butterfly Conservation (BC), for user-selectable periods from 1900 to 2019, together with record phenology by latitude charts in 10Km bands, for the same periods of years. It is hoped that moth- and butterfly-recorders will find this national feedback useful, whatever local county or region-based mapping is also available to them. The page offers easy and rapid comparison between species. All the data for all species is loaded before the page displays the species density map, and there is no further interaction with the website when a species is selected for display.
For micro-moths this page provides simple vice county maps showing distribution to 2022, without selection of year periods because only a list of vice counties was available for each species, not a full set of dated records.
This version of the maps provides finer-resolution distribution detail than the 10Km-only version, but at the expense of needing much more of the browser's memory to load all the necessary data. It works OK when viewed using Chrome on the developer's computer while few other web pages are open, but if it fails to work on your computer you might find that the 10Km version does work. This page is based on an earlier 'demonstration' page produced when only pre-2000 BC moth data was available, although that page does include some micro-moths and also more recent data for four counties/areas.
This page is produced by a volunteer member of Butterfly Conservation, Gloucestershire Branch. Local tetrad (2Km) scale moth maps for Gloucestershire were first put on the BC Glos. branch website in 2010 and updated annually. Feedback on those has been very positive and they have encouraged the growing community of the county's moth enthusiasts to send in their records. Hopefully these maps will have a similar effect.
Please note that Butterfly Conservation head office and staff should not be contacted about these maps. Butterfly Conservation has provided NMRS macro-moth records and BNM butterfly records up to 2019 to the National Biodiversity Network Atlas (NBN Atlas) website, where species distributions can be viewed, and optionally restricted to the BC datasets.
Macro-moth distribution data from the National Moth Recording Scheme (NMRS) and butterfly distribution data from the Butterflies for the New Millennium (BNM) Recording Scheme, courtesy of Butterfly Conservation. Records were made available for the period up to 2019 on the National Biodiversity Network (NBN) Atlas website in September 2023. Use of these records is covered by the Creative Commons with attribution non-commercial licence (CC-BY-NC). Butterfly Conservation has NMRS database rights. Recorders retain copyright of their original records. NBN Atlas occurrence downloads at NBN Atlas accessed on 28 & 29 September, 2 & 3 October 2023 (moths) and 21 February 2024 (butterflies).
The NMRS & BNM records available on NBN Atlas are at 2Km or 10Km resolution with records for some species only at 10Km. The 2Km tetrad-scale maps are blank in areas where the records shown on the 10Km maps are all at 10Km resolution. Some records are known to be missing from the maps (e.g. Large Red-belted Clearwing, Toadflax Brocade, Tree-lichen Beauty, Clancy's Rustic, Fen Wainscot and Langmaid's Yellow Underwing from VC34) perhaps because record verification processing had not been completed at the time of the data upload to NBN. Records for the Channel Islands had been converted from UTM grid references to Latitude & Longitude for NBN purposes, and back to UTM grid for mapping here. Some of the Channel Islands butterfly records were found to have incorrect lat/long coordinates; those records were ignored for these maps.
For micro-moths, full national record data was not available. Annual microlepidoptera reviews are published in The Entomologist's Record and Journal of Variation. The reviews contain mostly new Vice County records, also some re-finds after long absences and entries for other reasons such as use of a previously unreported larval foodplant. The micro-moth VC data is from three sources:
Those adventive species listed in Appendix A of the Checklist of the Lepidoptera of the British Isles are excluded from these maps.
This version of the distribution maps has a number of map options which are described below.
A similar version with only 10Km maps is available,
and also two much simpler versions which have been designed for use
with phones (though they can also be used on a computer).
All versions have been used with the Chrome browser on a computer, and the phone versions with Chrome on an
Android phone, with at most a few other open tabs on the computer browser and none on the phone.
Please read the Disclaimer section below.
### WARNING ### The 2Km & 10Km phone version crashed the browser on an older Android phone
(but the 10Km version worked on that phone).
The phone versions can both be used offline in places with no phone signal if you download their HTML files from the website to your phone's internal memory. Previous versions required separate map graphics files, but the latest versions have the map graphics embedded within the HTML files because some phones do not allow browsers to access local storage directly. On a recent Android phone the file manager can be used to select display of a locally-stored web page, rather than entering an address in the browser.
First wait until the map data has been downloaded from the website into your browser. This can take several seconds, and you will see when it has been completed because the display will then show the species density map. From then onwards you can select and display species maps without any further delays because all the necessary data is already in the browser ready for the maps and charts to be drawn.
To choose a species by name, key in at least 3 characters of the name in either the scientific name box or the common name box. The number of matching names is shown in the drop-down selection choice box below the name boxes; use this to select the species. A unique match results in automatic selection, and the selection box opens automatically if there are at most 6 matches.
Scientific names and ordering follows the main section of the Checklist of the Lepidoptera of the British Isles (ABH: Agassiz, Beavan and Heckford, 2024 second edition). No map is given for New Forest Burnet, to protect its only remaining UK site which is in Scotland. Any checklist species with no mappable records are also excluded, as are adventive species in Appendix A of the checklist. Any other inclusions or exclusions are unintentional.
Common names for macro-moths also follow the ABH checklist, except for some moth species with more than one name (in some cases for subspecies or forms). For such species those alternative names which are also shown in the 2019 Atlas of Britain and Ireland's Larger Moths are used here. Any part of the name can be used and matching is not case-sensitive, so for example entering "tig" in the common name box gives a list of the Tiger moths. For some years Jim Wheeler's list of common names for the micro-moths has been available via the Norfolk Moths website, but in 2023 a new set of names for most species was published in the Second Edition of the Field Guide to the Micro-moths of Great Britain and Ireland (Sterling, Parsons & Lewington). These maps give the new common name for micros, followed by "/" and the name previously used, if different. Where the first name is enclosed in **asterisks** the new list name is misleading: "Leaf-miner" for two species which actually mine stems not leaves.
You can use the species slider bar above the map to move forwards and backwards through mapped species in Checklist order. Click on the [<<] or [>>] button to move backwards or forwards by one species. Alternatively in some browsers you can use the mouse wheel to scroll through the full set of species maps when the cursor is over the graphics area, or through the set of matching species when the cursor is over the matching names selection box.
The initial map shows the numbers of species recorded for each 10Km square. This map precedes the first species map when using the slider bar, movement buttons or mouse wheel. To see the total number of macro-moth and butterfly species mapped for a square, move the cursor over that square on the map. With the cursor positioned over a square on the map, you can use mouse clicks (un[Shift]-ed) to move backwards and forwards through the maps of species recorded from that square in the selected years period, or alternatively move through the maps of species not recorded there but recorded in at least the chosen number of adjacent squares (1 - 8) during the selected period. This can be used to identify those species not yet recorded in a particular square but which are quite likely to be present there.
If you want to compare maps for two species (or more), you can use the preset buttons. These are updated automatically as you display different maps. To cycle through several maps for comparison purposes, select each map in turn then repeatedly click on the lowest button for one of these species. Each time you do this the chosen species is moved back to the top button and the others are shifted down by one position so that you always click the same button to see the map for the next species in the comparison group.
If the option is selected by clicking on the vertical bar at the right edge of the parameter selection area, another image area is opened up and maps for the previous two species are shown at half-size in this area. Ignore this option if it makes the display wider than you want it to be. To close the half-size maps, click on the vertical button with < marks (or anywhere else over those maps), to widen it for display of four half-size maps, click on the vertical button with > marks.
You can use the vertical range bar with two sliders to select the earliest and latest year periods to include in the distribution maps and latitude charts for macro-moths and butterflies. Dragging the upper slider downwards will also move the lower slider down so that they do not overlap, likewise dragging the lower slider upwards will move the upper slider up if necessary. Using these sliders there are 10 different combinations of year periods which can be shown, and the display changes as a slider crosses from one year period to another. The same period options are available for the initial species density map.
Instead of the whole area map and latitude chart, northern, western and southern sections of the map can be shown at a larger scale to make it easier to see the distribution in one area. Distribution at 2Km resolution can also be shown, as described in the section below. Altitude shading is available on species maps; this is based on open data from Ordnance Survey (for England, Scotland & Wales, contains OS data © Crown copyright and database right 2018) and from the EU Open Data Portal: the EEA Elevation map of Europe.
For macro-moths and butterflies, instead of mapping species distribution by year period showing the latest of the selected periods for each 10Km square, you can select the option to show the oldest period for each square. This highlights range expansions during the recent periods. You can also select a map showing the number of years the species has been recorded in each 10Km square, or a map showing Vice County distribution (either the latest of the selected periods, or the earliest). NB Not all of the records contained VC locations, so there are a few mismatches between 10Km maps and VC maps (although in some cases the grid references were used to determine missing VCs unambiguously). The VC locations in some records could be incorrect, because the NBN Atlas description of the dataset states "Location is given as the dominant Vice County for each record in Great Britain; for Northern Ireland a nominated Vice County is selected where more than one overlap the grid square".
For micro-moths the only maps shown are Vice County distribution to 2022. The year period and most other parameter selections do not apply to these VC maps, but you can select display of West, North and South areas.
After selecting a 10Km square by [Shift]-click over the map you can display the tetrad distribution in an area around that square, using the radio button below West, North and South buttons. The area covered is a square of size 70Km initially, with zooming out to 90Km, 110Km, 160Km, 210Km, 290Km and 370Km also being selectable.
The four buttons [<<<] [>>>] [^^^^] [vvvv] move the map left, right, up and down respectively (if such a move is not prevented because of the current selection position). You can also scroll the mouse wheel over these controls to change the tetrad map size or move the map. Over the left and right buttons, scroll the wheel downwards to move in that direction, upwards to reverse the direction. Over both the up and down buttons, scroll the wheel downwards to move the map down, upwards to move the map up. [Shift]-clicking on a 10Km square on a tetrad map changes the selection to that square and moves the map.
The latest tetrad distribution for the selected year ranges is shown unless the oldest 10Km option is selected, in which case the oldest tetrad distribution is shown. No tetrad distribution is shown for protected species.
You can make the map display start at tetrad scale in a selected area by specifying this at the end of the web page URL address. Append the # character followed by the tetrad map size (70, 90, 110, 160, 210, 290 or 370) and the 10Km square grid reference. So for example, appending #90SO81 shows a 90x90 Km tetrad map centred on Gloucester. If you append just the 10Km square reference without the map size (e.g. #SO81), the display starts with the whole map and latitude chart, and pairs of horizontal and vertical lines drawn to highlight the selected 10Km square. You can also append the ABH checklist number of a species (after the tetrad scale and 10Km square reference) so that the page loads displaying the map for that species, e.g. appending #90SO81ABH70.061, or just #ABH70.061 to display the map for Common Carpet.

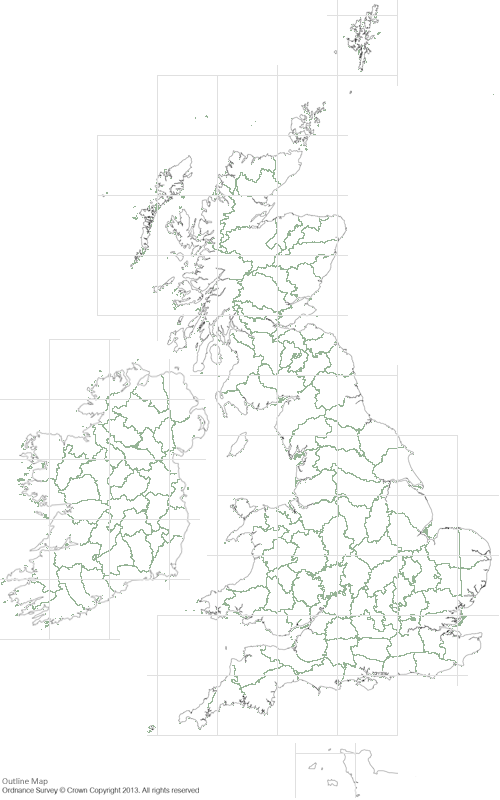

The tetrad maps can display Vice-county boundaries. The England, Scotland and Wales data for these was obtained from the National Biodiversity Network, under the terms of the OS Open Data Licence. Contains OS data © Crown copyright and database rights (2003). The data for Ireland was obtained from GitHub (https://github.com/SK53/Irish-Vice-Counties) under the Open Data Commons Open Database Licence (ODbL), attribution: © 2015 Open Street Map contributors.
When displaying 10Km distribution maps you can select the option to show a 2Km map for the 10Km square determined by the current pointer position.
For many species a comment is shown below its map. In most cases this gives the verification grading from BC's UK Macro-moth Verification Grade Guidelines V1.0.1 (May 2021). Comments based on local experience have been provided for some species.
Gradings for verification of adult macro-moth records are on a scale of 1 to 4, defined as:
For micro-moths, verification gradings issued by Butterfly Conservation in early 2016 are given.
These consist of gradings for identification of adults
(except for many of the Nepticulidae which are considered too similar in appearance),
for larval cases of those species which construct them, or for leaf mines of those
species which make them. The gradings below are copied from the
BC Guidance
document, which contains additional guidance.
The species gradings shown on the maps are copied from the
Spreadsheet
which also contains comments on some species which in some cases limit
the applicability of the grading.
NB For a few species it was necessary to change the gradings &/or comments from the original versions.
The national gradings of a number of other species may be too low for local purposes if not followed
strictly: e.g. any specimen thought to be new to a county and similar in appearance to a species already
found there might need to be retained and perhaps dissected to be certain of its identity, whatever the
national grading.
The chart to the right of the whole area map shows numbers of records for each 10Km of latitude in 4 date periods per month (1st - 7th, 8th - 15th, 16th - 23rd and 24th - end). Adjustments were made to the outline map to align with the chart, rotating Ireland and slightly shifting the Channel Isles. The tick marks outside the left edge of the chart indicate Irish 100Km grid lines.
Time of year by latitude includes records of non-adult stages, but for most species there are relatively few of these and the charts indicate the main flight period(s) for adults. This clearly shows how some species are bivoltine in the south and univoltine in the north. The charts also show how some spring or early summer species emerge noticeably later in the north whilst some autumnal or winter species emerge earlier in the north. Later emergence in the north applies to some high summer species (e.g. July Highflyer, Barred Yellow, Minor Shoulder-knot) whilst earlier emergence in the north also applies to some summer species (e.g. Orange Swift, Six-striped Rustic). The charts indicate significant recent changes in phenology for some species, e.g. Green Carpet now has a second generation much further northwards than in the past.
You can change the dot colours used on the distribution maps, the species density map and the latitude charts, and the changes can be saved to a cookie (if your browser settings allow this) so that they are loaded automatically when you visit the page. Click on the [Colours] button in the top left corner to open a colour selection panel which includes instructions.
Below the map you can produce species lists for 10Km squares. [Shift]-click on a square on the map to select it. Using the map options, choose the years period for the list, and whether to list species recorded in the 10Km square or alternatively "target" species not recorded in that square but recorded in at least the selected number (from 1 to 8) of adjacent 10Km squares during the selected years period. Use the radio buttons above the species list text area to choose between moths or butterflies or both; scientific or common names or both, and the separator character between items in each list entry. Then click on the Make species list button.
For micro-moths you can make a species list for the selected Vice County.
When you first select a 10Km square it is highlit on the map by pairs of horizontal and vertical lines. [Shift]-click on the same square to leave it selected but remove these lines.
Species lists can be viewed in the text area which should be scrollable. Page searches using [Ctrl]-f should find entries in the list. The number of species entries in the list is given at the bottom of the list. The list can be downloaded to a file on your computer by clicking the Download species list button; the default filename is set using the 10Km square reference, the years period, and the adjacency requirement if that option is selected.
You can make the map display start with a 10Km square already selected by specifying this at the end of the web page URL address. Append the # character followed by the 10Km square grid reference. So for example, appending #SO81 shows the selection of the square containing most of Gloucester. Other URL address options are described in the 2Km tetrad-scale distribution section.
UK national status data for our resident macro-moths was updated in 2019 and published in the Atlas of Britain and Ireland's Larger Moths; this uses IUCN regional Red List categories. The maps use these published status ratings with few amendments, e.g. following checklist changes.
The maps also show Biodiversity Action Plan / NERC Act (2006) Section 41 priority species for action, and Biodiversity Action Plan declining species for which research is needed, as BAP and BAP(R) respectively, preceding the species status.
The IUCN threat category abbreviations used here for macro-moths are given in the table below. Most migrants, adventives and those long extinct in the UK were not assessed in the 2019 review, and their status is described on their map.
| RE | Regionally Extinct. No confirmed records in Great Britain and Ireland for many years |
| CR(PE) | Critically Endangered, Possibly Extinct. Threatened by extremely high risk of regional extinction |
| CR | Critically Endangered. Threatened by extremely high risk of regional extinction |
| EN | Endangered. Threatened by very high risk of regional extinction |
| VU | Vulnerable. Threatened by high risk of regional extinction |
| NT | Near Threatened. Close to qualifying for one of the threatened categories and/or likely to qualify for one in the near future |
| LC | Least Concern. |
| DD | Data Deficient. Status uncertain because of insufficient data on abundance and/or distribution |
The threat ratings above do not necessarily indicate scarcity or rarity, nor vice-versa. Some currently widespread but formerly more abundant species have suffered such long-term population declines that they are rated NT or VU. Some scarce or rare species are not considered to be under threat now or in the near future, and so they are rated LC. Rare, Scarce (A) & Scarce (B) ratings have been added automatically based on the total recorded number of 10Km squares in 2000-2019: 1-15, 16-30 and 31-100 respectively. Some species labelled as migrants are resident in the Channel Islands.
If you hold down the [Alt] key and click on a 10Km square, OpenStreetMap data is shown for the square and adjacent land, to the right of the optional halfsize display of previously selected species maps. Approximate square boundary grid lines are shown over this map, but in general their position could be incorrect by up to a kilometer, perhaps more in some cases. You can close the 10Km square map display by clicking anywhere on it.
There is no guarantee of complete accuracy in terms of the species recorded, their locations and dates. The known difficulties of accurate identification in some species groups means that in a dataset containing tens of millions of records it is quite likely that some mistakes have survived the record verification processes. The Vice County data for macro-moths and butterflies may contain errors as indicated above, and there could be errors and omissions in the data for micro-moths extracted from annual reviews and manuscript maps.
Use of this web page is entirely at your own risk. No liability is accepted for any indirect, consequential or incidental loss or damage arising from its use. There is no guarantee that the scripting which loads the map and chart data and which uses it to construct the displays and species lists will run without causing any problems in a particular browser on a particular device. You are advised to ensure that any work (document editing, etc) has been saved before making use of this page, and to avoid opening more than one version/copy of this page simultaneously.
